Stationary blade rotary compressors

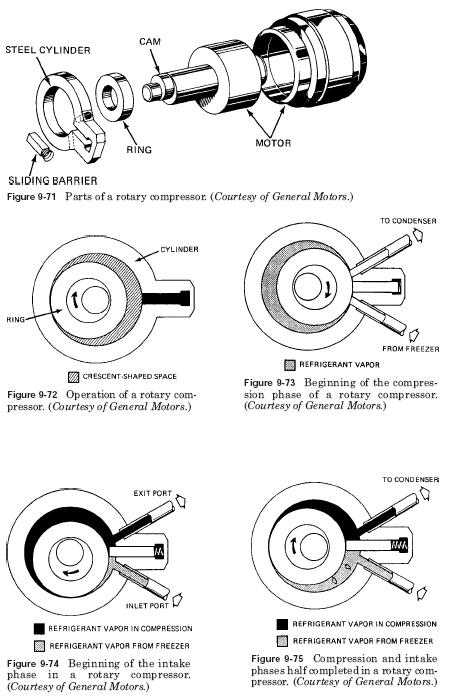

Only moving part is fixed knife rotary compressor are steel ring, whimsical, or cam and sliding barrier (see Fig. 9-71). Fig. 9-72 shows how to rotate off-cam center compresses the gas-refrigerant in the cylinder rotary compressor. Cam is rotated by an electric motor. Cam-spins she wears a ring with him. Ring roll on the outer rim around the wall of the cylinder.

Be delivered into the chamber, the gas must be a way. Please note that in Fig. 9-73 pair comes from the freezer and leaves the condenser through the holes that were drilled in the compressor. Please note that the offset of the rotating ring compresses the gas. Fig. 9-74 shows how refrigerant vapor in the compressor, brought from freezer. Then, output port is a discovery. When the compressor starts to pay in pairs from the freezer barrier runs from the ring by a spring.

The barrier separates the intake and outlet channels.
Ring rotates the cylinder, it compresses the gas and passes it to the condenser (see Fig. 9-75). Finish compression part of a stroke or operation is shown in Fig. 9-76. Ring rotates around the cylinder walls. Spring tension barrier spring and pressure of cam being driven by an electric motor to hold it in place. This type of compressor used not so much as a sealed reciprocating compressor type.

..
