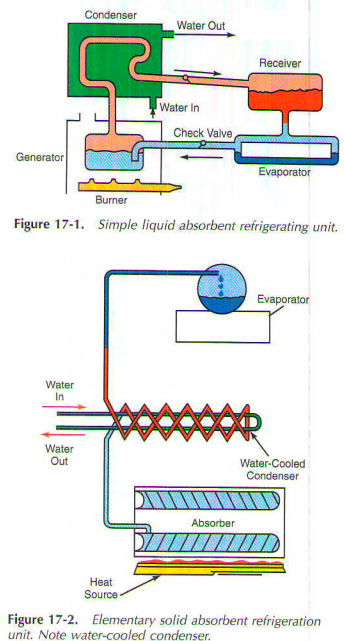

Capacitor, receiver, and an evaporator coil), similar to those in the compression system. Compressor, however, is replaced with a heater and a generator. The presented systems have been simplified in the comfort of the various controls. They will be discussed in subsequent sections. Fig. 17-1 illustrates the main absorption system liquid absorbent type. He uses a water-cooled condenser.
Fig. 17-2 illustrates the basics of the system to absorb. This chart shows solid absorbent type.
