Room Humidifiers

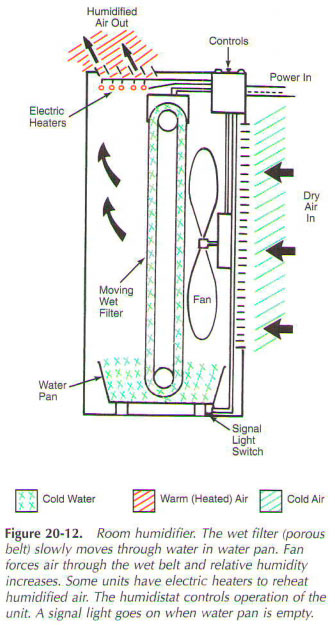

A humidifier is used to maintain the humidity of air (%) moisture in the air). Humidifier is located in the Cabinet, located in the building or the premises in which the humidity increases. Cabinet is supplied with air from the blinds. Fan circulates air through the room. Rotate the screen or filter (wetted surfaces) failures or tray tray filled with water. Then he puts the wetted surfaces to the airstream. A typical air humidifier shown in Fig. 20-12.

Electric heating element is sometimes used to warm the water to a greater evaporation. The controls consist of a switch and the relative humidity. Led indicates the need to refill the water trough. In some installations, the humidifier can be connected to the building of water supply and refilled by means of valves controlled by an automatic float mechanism.
