Freezing Dispenser Evaporators
Evaporator frozen dessert dispenser is used to mixtures, such as soft-serve ice cream and yogurt, at a very accurate temperature control. Mixing of the components are designed for the outflow of the mix for the correct sequence. The mixture is then forced out of the dispenser and in the form of a cone or Cup serving.

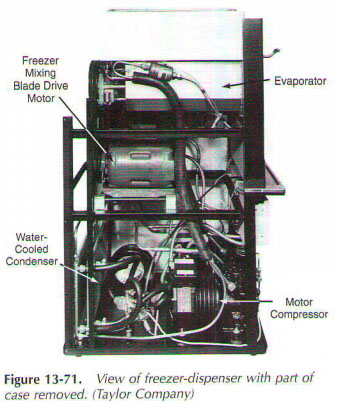

The freezing of the evaporator is a cylinder in which a motor-driven dasher churns mixture. The refrigerant then travels to the premix storage compartment. Note instructions on manufacturing of electrical connections for dasher motor. Fig. 13-71 shows the components of ice cream freezer dispenser. He uses good hermetic compressor motor and water-cooled condenser. Separate motor is used for the drive of the mixing blade in the evaporator.
..
|
