Severn companies now manufacture sealed units more than 20 horsepower. Some bolts Assembly. They are often called "field serviceable" or "affordable". Some rooms have a sealed welded body. Both types are equipped with valves. They can be connected to any type of evaporator and used for various applications.
Advantage sealants in the commercial field liquidation of the crankshaft seals and belts. Any trouble in the mechanism includes compressor and compressor and engine. Thus, a technician working on these sealed units shall retain moisture and dirt out of the system.

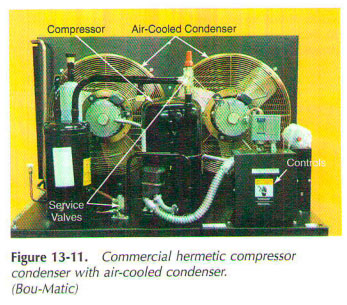

Outdoor sealed air cooled condenser shown in Fig. 13-11. He has condenser fan, shroud, and the service valve. Inside welded hermetic compressor motor. Smaller units are single-phase motors. Units more than 1/2 HP tend to have three-phase motors. Capacitors can be installed in different ways. Some are mounted on the roof. The rest are located on the same floor with the evaporator. These units are located in different rooms or outside the building.
Note services valves located outside of condensing units for assistance in installation and maintenance.
Manufacturer-gathered condensing unit. Paired with the evaporator Assembly, it can satisfy a wide range of cooling needs. This built-up split-cooling system designed to operate at different loads. Factory-installed accessories include ready-made controls and fully charged connecting of refrigeration lines.
For larger installations, two-motor-compressor of the projects are designed to provide more cooling. They are:
Tandem Assembly of motor-compressors.
Parallel build engine compressors.
Tandem design connects two motors-compressors, together with the engine. These units can be run separately for low load or together with a full load. However, if one motor compressor fails, the whole system must be closed during the service.
Parallel design connects two or more units in parallel pipelines. Units also require compressor oil pipeline system. This ensures that all compressors have the correct quantity of oil in each Carter during operation.
