Technical information Refrigeration Shell-and-Coil condenser

Shell-and-condenser Coil

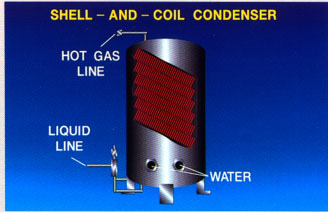

Shell-and-Coils, capacitors have a welded or flanged outer shell with a coil inside are made of ribbed water tube. Coil inside the shell is continuous. Water flows through pipes of the coil, while the refrigerant flows above and beyond. The outer surface of the heat exchanger tubes and fins are in contact with the refrigerant. This is a vertical Shell-and-the condenser Coil. This can also be done in a horizontal position.

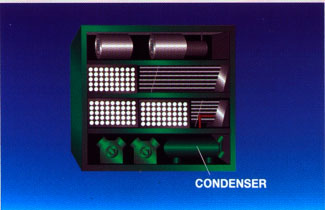

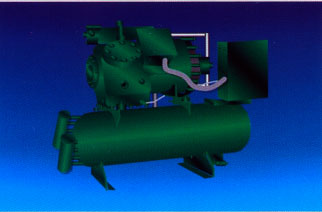

The Shell-and-condenser Coil, sometimes in combination with compressor, hot gas pipelines, electrical and necessary compressor controls for the formation of commercial water-cooled condensing unit like this. Is the use of Shell-and-condenser Coil is usually limited to 20 tons of cooling capacity. Pipelines, which you can see on the left side of the hull, to the condenser water. Hot gas line is connected to the shell in the centre at the top, while the liquid refrigerant vapour at the outlet is at the bottom of the hull on the right.

..
