Technical information Cold storage Door and safety exits

Doors and security outputs

The corresponding door design and traffic control are needed. The movement should be allocated, first of all, stackers and reach trucks, each group has its own entrance and exit of the object. Having separate traffic, then you must enter the one-way flow. For large stores in the six-door installation is a good configuration. It can handle large volumes of traffic safely and efficiently and have a degree of redundancy.

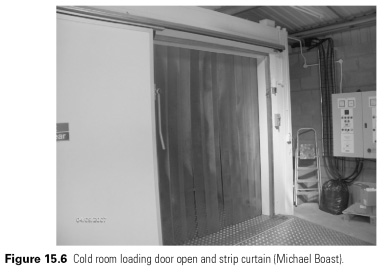

Two one-way doors deal with reach trucks. Two pairs of smaller side doors are used for hydraulic carts. All entry through airlocks about six feet in length. Doors can be vertical or horizontal in operation; often a combination of both gives the best result. Each end of castle in the air has a quick movement of the door. Strip curtains are used for small shops (see Fig. 15.6).

The latest technology for the rapid movement of the door will open and close the door at a speed of 3 m/s or faster. Installation of doors to reach trucks requires careful consideration, as these inputs can be 4.5 m in height.

Low-temperature fast doors for doors with the height of 5 m

All mechanical doors required by law to be able to hand in the event of a power failure, and the doors of all types should have the attachment, which can be opened from the side in case of operator closed the store. Large rooms must escape door or breakthrough sunroof panel or the remote end from the door, for use in emergency situations...
